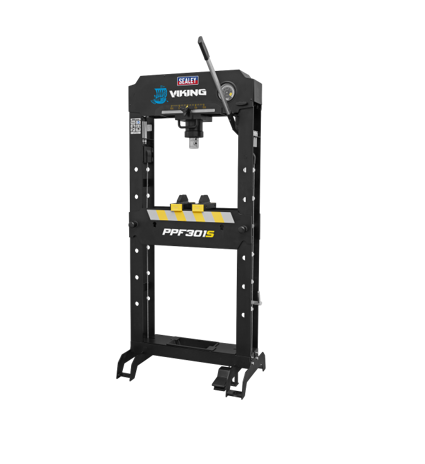

Sealey PPF301S Viking Air / Hydraulic Press Floor Type With Sliding Ram & Foot Pedal – 30 Tonne

Our price
£1,997.94 Inc. VAT
£1,664.95 Ex. VAT List Price: £1,849.95 + VAT
SKU: SYPPF301s

Description

  • Heavy-duty steel frame construction with integral air motor powering hydraulic pump unit.
  • Screw adjustable ram and adjustable work area with removable tray.
  • Sliding hydraulic ram assembly giving 200mm of lateral travel for off-centre pressing applications.
  • Frame head fitted with ram pressure gauge.
  • Winch assisted press table adjustment.
  • Storage for press pins included in frame.
  • Supplied with press pins, flat pressing plate/V-blocks.
  • 5 Year guarantee*.
  • This item is heavy. Extra assistance must be provided at the delivery point to help its safe delivery.
  • Air Consumption: 4.5cfm
  • Bench or Floor Mounting: Floor
  • Capacity: 30tonne
  • Gauge Included: Yes
  • Lateral Ram Travel: 200mm
  • Maximum Height – Ram to Table: 875mm
  • Minimum Height – Ram to Table: 25mm
  • Nett Weight: 162.5kg
  • Overall Height: 1800mm
  • Overall Width: 770mm
  • Ram Diameter: Ø102mm
  • Ram Stroke: 145mm
  • Screw Extension: 75mm
  • Table Aperture: 168mm
  • Type: Floor
  • Working Table Depth: 188mm
  • Working Table Width: 710mm
