3 modules per drawer.15 to 24 modules distributed in 60 and 130 mm drawers
Worktop : Large worktop made of polypropylene with fiber impact and chemical resistant, static load resistance M3 800kg 2 Handles with soft cover for easier manoeuvrability, one for moving and one to lift the roller cabinet and ride over obstacles. Provided slots for 3 screwdrivers. Integrated edges prevent tools from falling while moving.
Accessories: Supplied with 1 bottle holder (fits on the right or left). Sides are perforated to receive accessories. Additional metal partitions in option: JET2.15 for 60 mm drawers and JET2.16 for 130 mm drawers.
Drawers: The 60 and 130 mm drawers can be fitted with thermo-shaped or foam modules from Facom Modular system program. The 200 mm drawers can also be fitted with modules.
Safety : Polypropylene drawer pulls with safety hooks, drawers cannot open while moving. Centralized locking system, delivered with 2 keys, one folding.
Manoeuvrability : 4 wheels diam. 125 mm, 2 swivelling (one with brake) and 2 fixed. Roller cabinet delivered with wheels already mounted.
Drawers useful dimensions (L. x D. x H.) : 569 x 421 x 60 / 130 / 200 mm. Load resistance per drawer : 20/25/30kg
Worktop useful dimension 560 x 460 mm, 0,26m2 / static load resistance 800 kg.
6 drawers roller cabinet = 15 modules – 3 drawers height 60 mm = 9 modules – 2 drawers height 130 mm = 6 modules – 1 drawer height : 200 mm (can also be fitted with modules)
Weight: 55 kg
Overall dimensions (L. x D. x H.) : 779 x 515 x 972 mm.

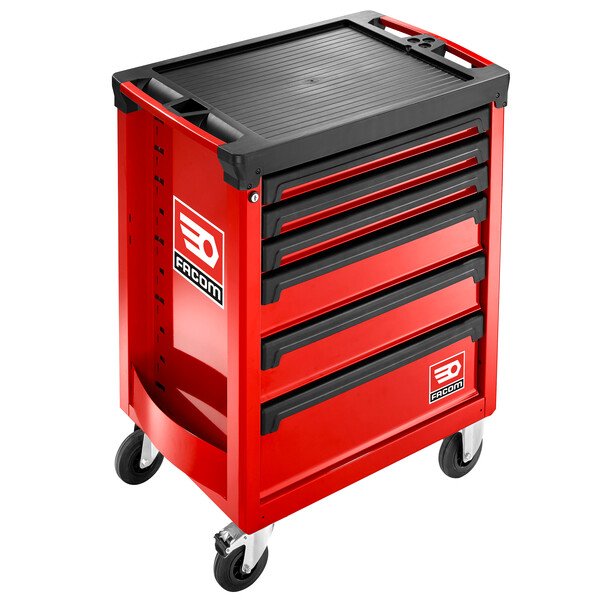

Share Facom ROLL.6M3A 6 Drawer Mobile Roller Cabinet - Red
