Facom CM.230 230 Piece General Purpose Tool Kit Module Trays In JET.8M4A Roller Cabinet

Description

230 piece general tool kit all in Facom MOD plastic modules for incredible organisation.

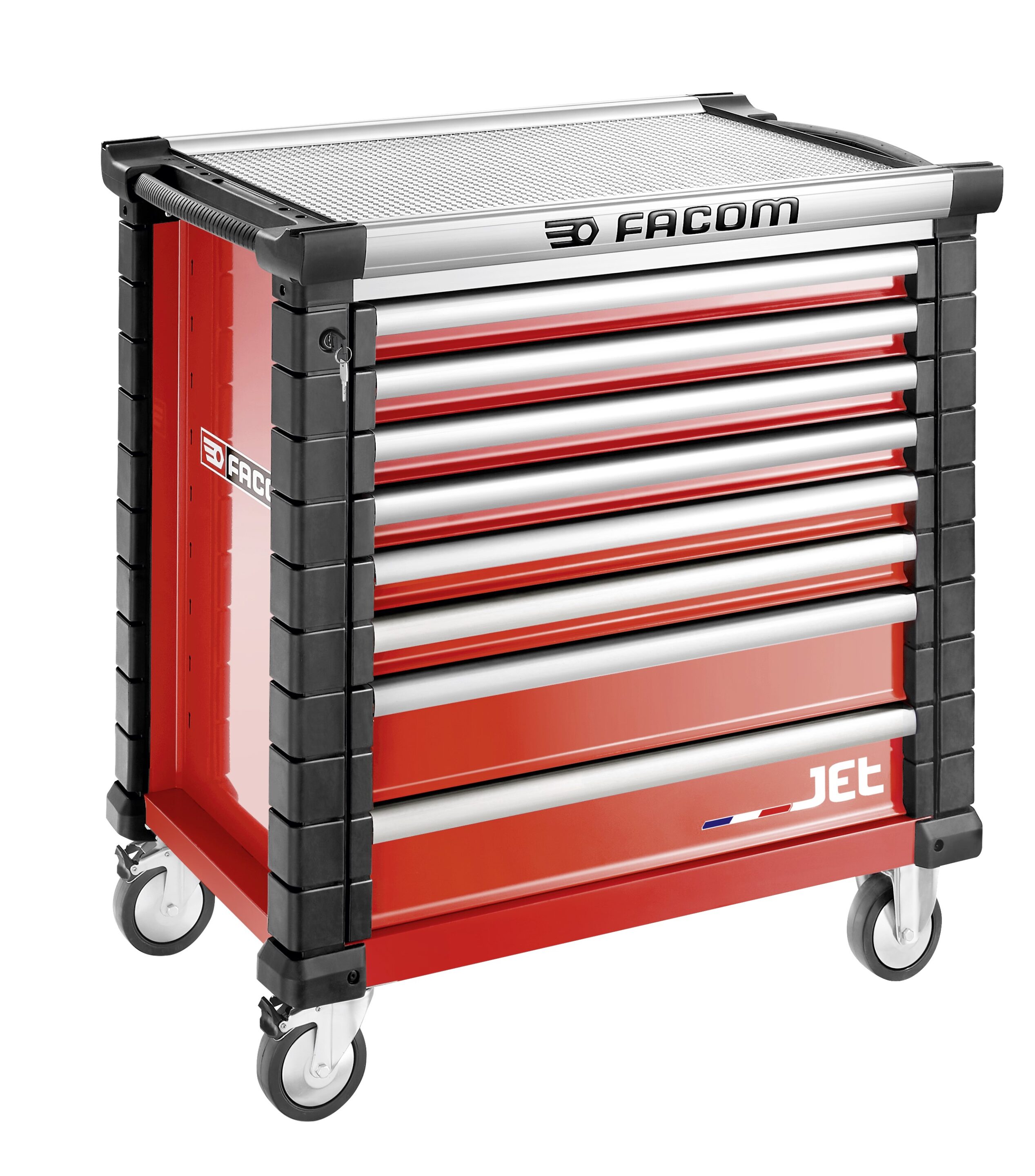

Roll Cab Details (JET.8M4A)

• 8 drawers roller cabinet = 32 modules distributed in the 60 and 130 mm drawers.
• 6 drawers height 60 mm = 24 modules.
• 2 drawers height 130 mm = 8 modules.
• Drawers can be fitted with thermoshaped or foam modules from Facom Modular system program.
• Load resistance per drawer: 25/30 kg.
• Equipped with ball bearing slides, total extension with “self close” return spring for an efficient and secure closure.
• 100% opening drawers for optimum ease of use.
• Total load in the drawers: 210 kg. Total storage capacity: 200 litres.
• Drawers useful dimensions (L. x D. x H.) : 759 x 421 x 60 / 130 mm.
• Supplied with 12 partitions JET2.15 for 60 mm drawers.
• Additional metal partitions can be ordered separately if needed. (JET2.16 for 130 mm drawers).
• Extra large worksurface : +25% vs JET+. Useful dimension 797 x 461 mm. 0,37m2.
• High resistance : a 2 mm aluminium plate -rice grain finish- covers a 15 mm wooden board.
• The end caps are made of impact-resistant polypropylene.
• The worktop can receive a vice and is resistant to impacts and hydrocarbons and a static load of 1000kg.
• Even more functional : integrated bi-material handles with soft coating on each side of the cabinet.
• One for moving and one to lift the roller cabinet and ride over obstacles.
• Innovation: the aluminium rails of the worktop have been designed as an integrated hanging system for accessories.
• The installation of accessories is fast and secure.
• A wide range of accessories is available and will allow you to customize your roller cabinet according to your needs to make it a real workstation.
• Dedicated slots for 8 screwdrivers.
• Built-in edges prevent tools from falling on the move.
• Exclusive FACOM design ensuring easy grip. Lifting handpulls made of anodized aluminum with safety hook avoiding any opening while .
• Premium self-closing system ensures secure closure and further safety
• Centralized locking system, delivered with 2 keys, one folding.
• With new soft bumpers in elastomeric thermoplastic with damper effect shock: on the 4 angles and on drawers protecting the safety hook.
• High performance manoeuvrability :
• Reduced start-up effort (less than 7kg thrust), Long lifetime (resists to chipping, common hydrocarbons), High resistance to heavy loads.
• 4 wheels diameter 125mm, 2 fixed, 2 swivel, each with a brake for an extra stability while working.
• Roller cabinet delivered with wheels already attached.
• Worktop and sides can receive numerous accessories from the most basic to the most sophisticated ones.
• Top chest available as optional unit for added volume and flexibility.
• The FACOM JET series is made in France to the highest specifications and manufacturing standards.
• Each model is thoroughly tested to assess and validate its performance and comes with a five year manufacturer’s warranty.
• The drawers are tested over 50 000 opening / closing cycles, i.e. 10 years of use.

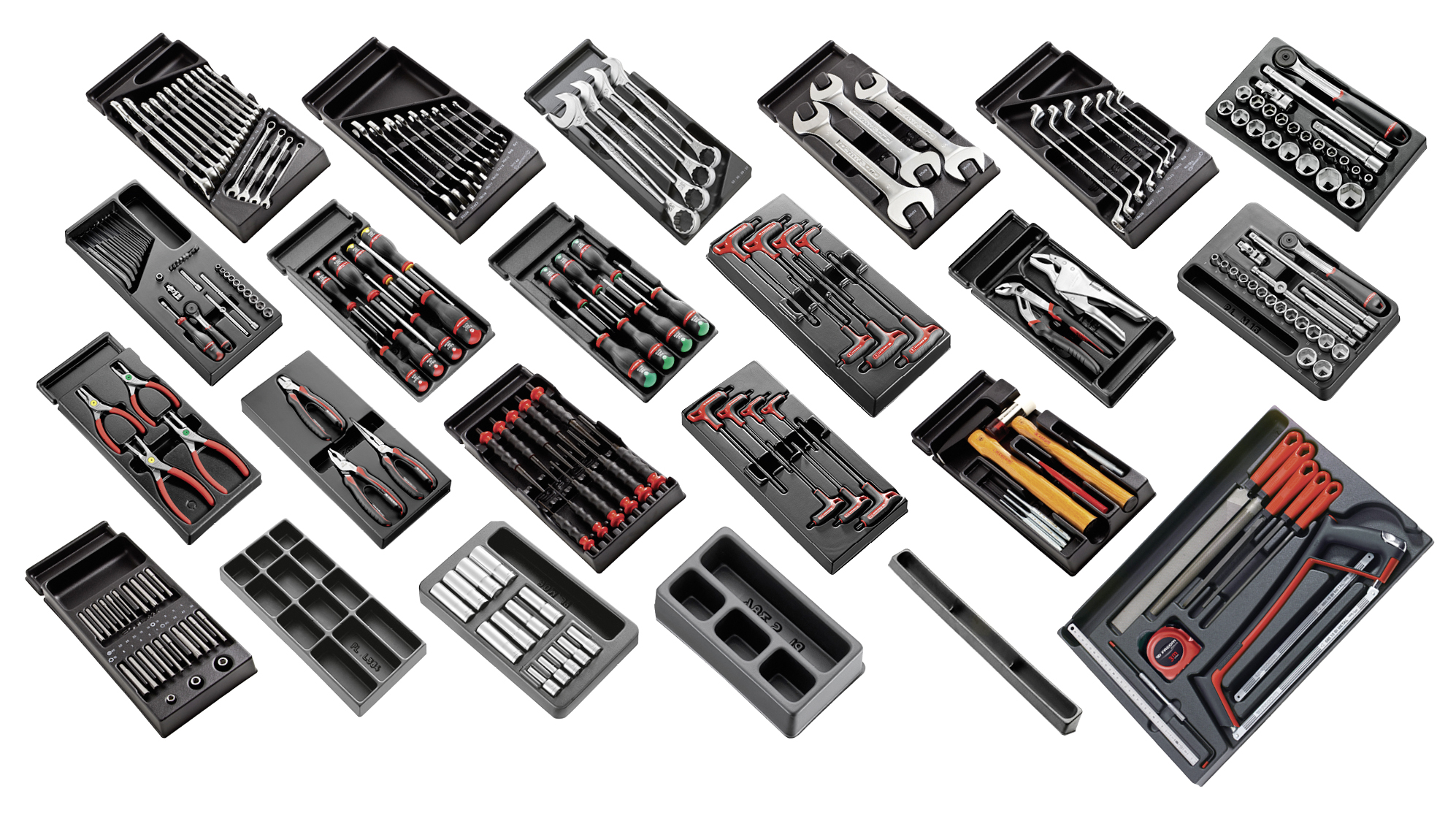

Tool Kit Contents
