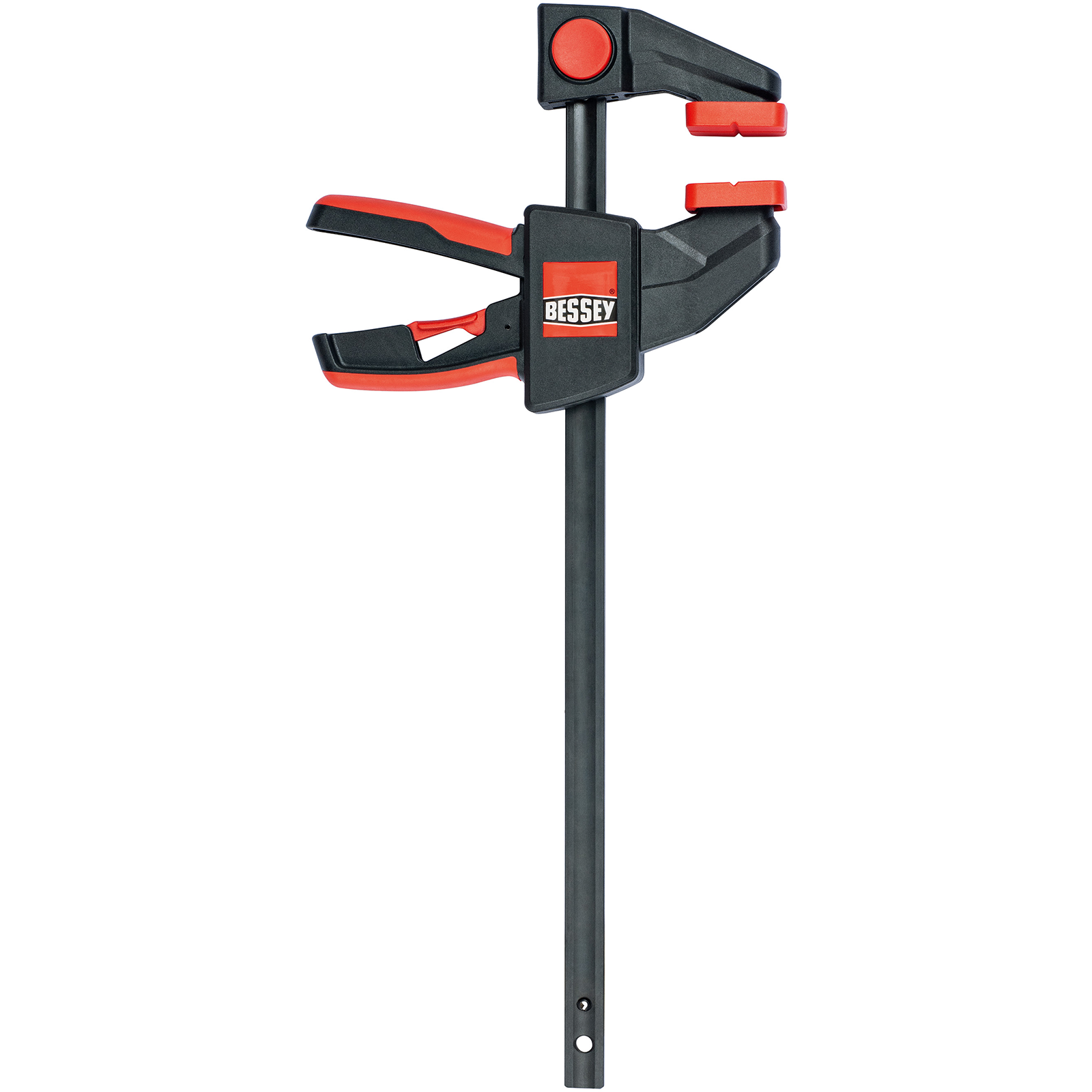

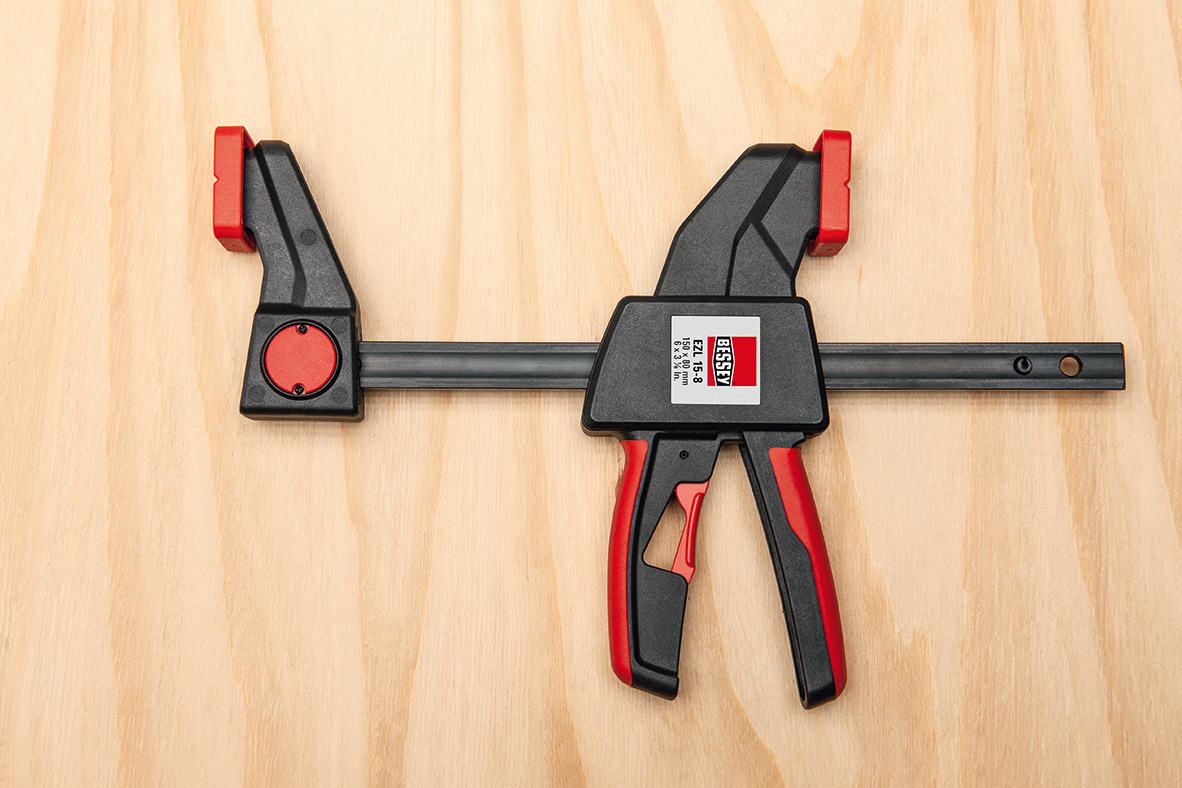

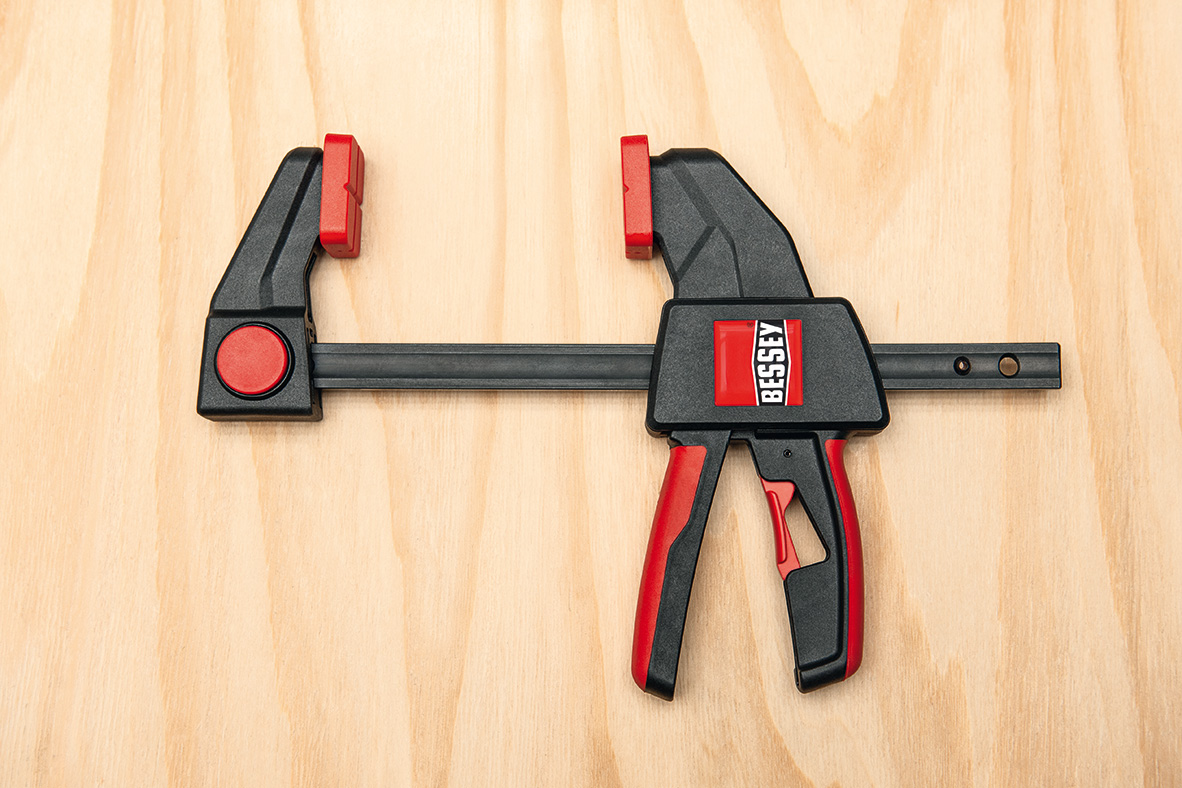

Bessey EZL60-8 One-Handed Clamp EZL 600/80

Multiple applications

The one-handed EZ range offers numerous possible applications:

• due to a diverse range in four sizes with clamping widths from 110 to 900 mm and clamping forces from 200 N to 2,700 N
• due to the cross prism integrated in the plastic protective caps for the secure fastening of round, pointed and angular pieces
• due to conversion of the top section from clamping to spreading – with sizes EZM, EZL and EZXL tool-free thanks to release mechanism at the touch of a button

Practical convenience

The entire range offers ergonomic handling, thanks to sophisticated technology:

• due to the high quality 2-component plastic handle with pump lever behind the rail for safe access from both directions
• due to the release handle integrated in the grip for quick adjustment of the sliding bar and for releasing the clamp

Robust design

Modern aesthetics meet with longevity here:

• due to the use of high-quality materials, such as fibreglass-reinforced polyamide for the top and bottom, as well as hardened, tempered, and burnished steel for the profiled rails
• due to the plastic housing, the grip mechanism is protected from dust and chips

Interior fittings

DIY

• Furniture and joinery works
• Staircase construction
• Dry construction
• Kitchen construction and shop fitting
• One-handed clamping and spreading

Rail made of hardened steel, burnished – Lever made of reinforced PA6 plastic

• Upper and lower section made of reinforced PA6 plastic
• Protective caps made of plastic
• Clamping force up to 1,400N / 140KG
• Conversion for spreading – tool-free with EZM, EZL, EZXL thanks to simple release mechanism at the touch of a button on the top section
• Ergonomically shaped 2-component plastic handle with pump mechanism and integrated release lever behind the rail
• Protective caps with cross prism on the top for securely holding round, pointed and angular parts
• One-handed operation with little effort required
